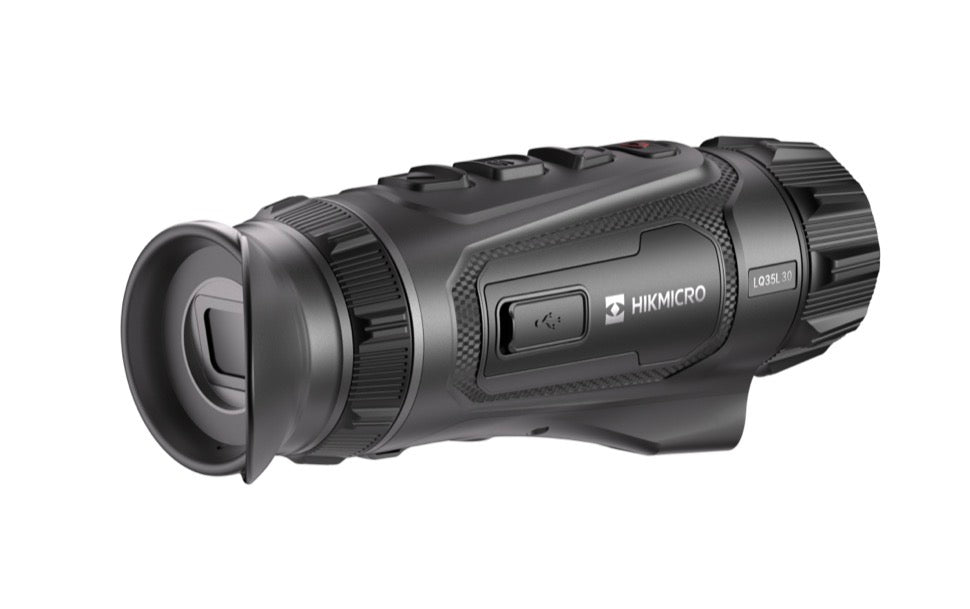

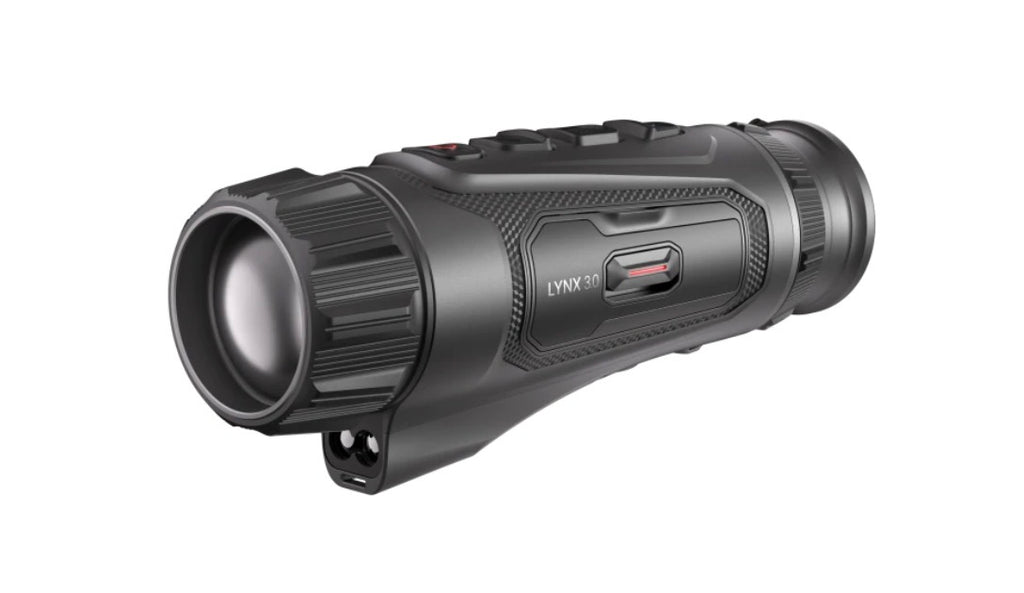

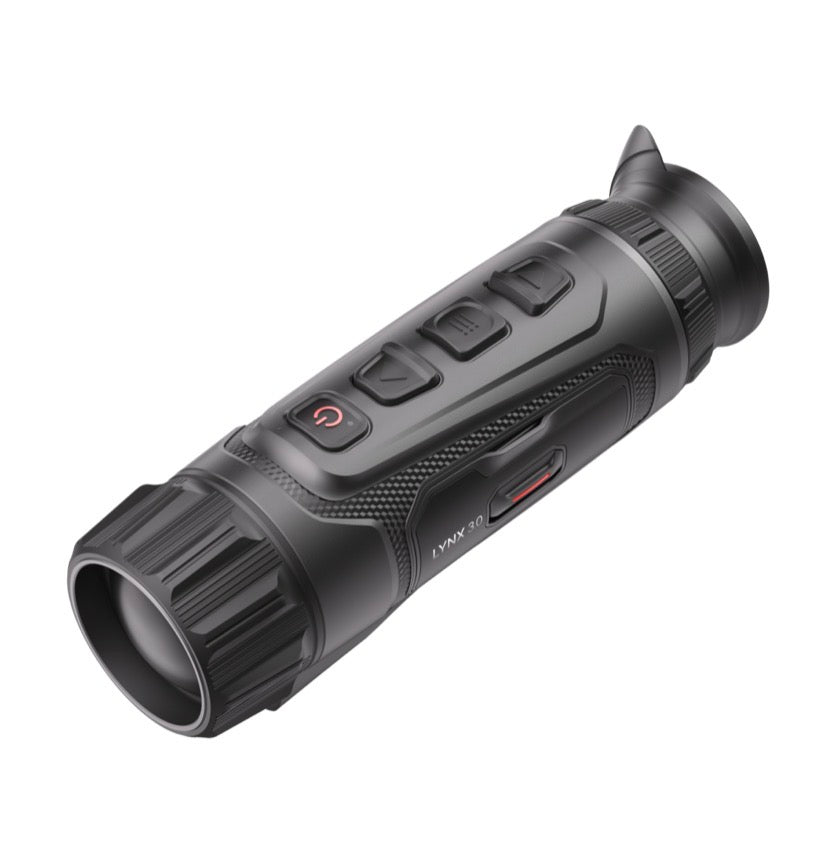

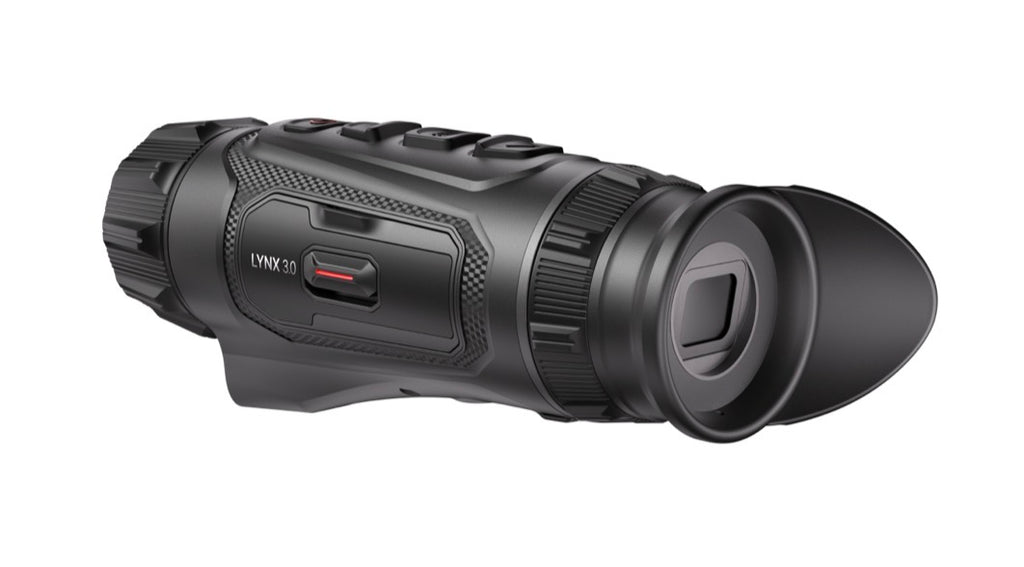

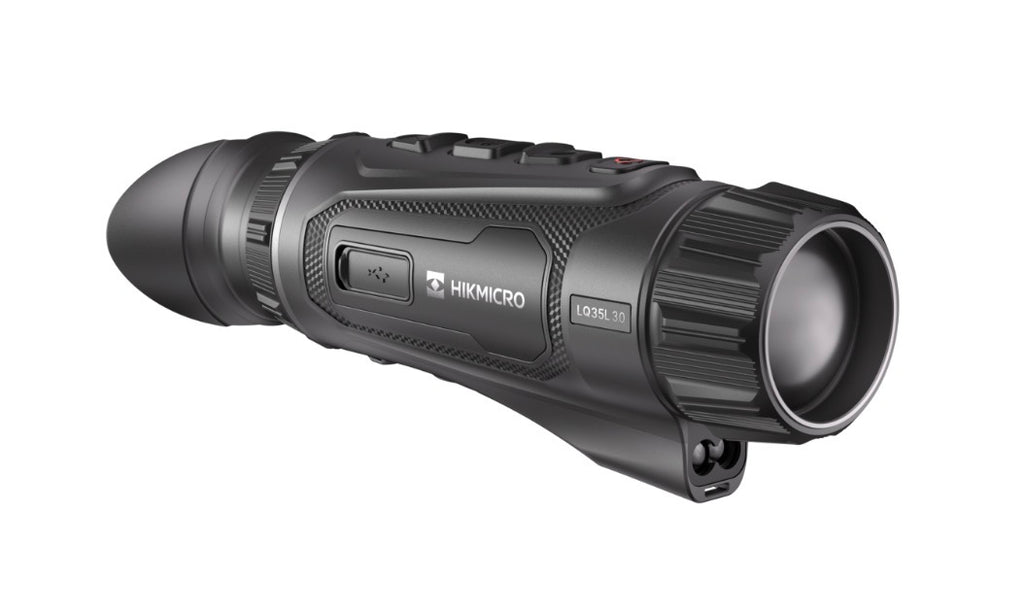

Hikmicro Lynx LQ35L 3.0
Hikmicro Lynx LQ35L 3.0
|
Specification |
|
|
Thermal Module |
|
|
Image Sensor |
VOx Uncooled Focal Plane Arrays |
|
Max. Resolution |
640x512 |
|
Frame Rate |
50Hz |
|
Pixel Interval |
12μm |
|
Response Waveband |
8μm to 14μm |
|
NETD |
Less than 15 mK (@25°C),F#=1.0 |
|
Lens (Focal Length) |
35mm, f1.0 |
|
Focus Mode |
Focus Ring |
|
Detection Range |
1800m |
|
Min. Focusing Distance |
3.5m |
|
Magnification |
1.9x - 15.2x (8x) |
|
Field of View(H × V), Degrees / m @100m |
12.5°×7.5°/21.9m×13.2m |
|
Image Display |
|
|
Display |
1920x1080, 0.49 inch, AMOLED |
|
Palettes |
Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome |
|
Exit Pupil |
6mm |
|
Eye Relief |
20mm |
|
Diopter (Range) |
-5D to +3D |
|
Brightness Adjustment |
Yes |
|
Tone Adjustment |
Cold, Warm |
|
Contrast Adjustment |
Yes |
|
Zoom Pro |
Yes |
|
HSIS (HIKMICRO Shutterless Image System) |
Yes |
|
Image Pro 3.0 |
Yes |
|
System |
|
|
Record Video |
Yes |
|
Capture Snapshot |
Yes |
|
Audio Recording |
Yes |
|
Standby Mode |
Yes |
|
Built-in Memory |
Built-in EMMC (64 GB) |
|
PIP |
Yes |
|
Hotspot |
2.4 GHz/5 GHz Wi-Fi Waveband |
|
Hot Track |
Yes |
|
Distance Measurement |
Yes |
|
Local Album |
Yes |
|
Power Supply |
|
|
Battery Type |
Replaceable and Rechargeable Li-ion 18650 Battery |
|
Battery Operating Time |
5-hour continuous running with hotspot on (@25°C) |
|
Type-C Power Supply |
5V DC, 2A |
|
General |
|
|
Protection Level |
IP67 |
|
Dimension |
173.3 x 66.8 x 49.3 mm |
|
Weight |
410.7g with battery |
|
Working Temperature |
From -30°C to 45°C (-22°F to 113°F); |
|
Laser Rangefinder |
|
|
Safety Class for Laser |
Class 1 |
|
Wavelength |
905nm |
|
Max. Measuring Range |
1200m |
|
Measurement Accuracy |
±1m |
|
Min. Measuring Range |
5m |
